| 型号 Type |
额定电压比 Rated voltage Ratio (kV/kV) |
准确级或准确 级组合 Accuracy classes Combination (VA) |
额定输出 Rated output (VA) |
极限输出 Max output (VA) |
额定绝缘水平 Rated insulation Level (kV) |
备注 Remarks |

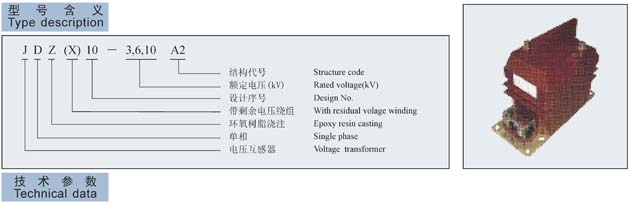

| JDZ10-3,6,10A2 | 3/0.1 | 0.2 0.5 1.0 |
15 30 60 |
150 | 3.6/25/40 7.2/32/60 12/42/75 |
同AZL10 |
| 6/0.1 | ||||||
| 10/0.1 | ||||||
| 3/0.1/0.1 | 0.2/0.2 0.2/0.5 0.5/0.5 |
10/10 10/15 15/15 |
150 | 3.6/25/40 7.2/32/60 12/42/75 | ||
| 6/0.1/0.1 | ||||||
| 10/0.1/0.1 | ||||||
| JDZX10-3,6,10A2 | 3/√3/0.1/√3/0.1/3 | 0.2/6P(3P) 0.5/6P(3P) 1.0/6P(3P) |
15/50 30/50 60/50 |
150 | 3.6/25/40 7.2/32/60 12/42/75 |
同AEL10 |
| 6/√3/0.1/√3/0.1/3 | ||||||
| 10/√3/0.1/√3/0.1/3 |
