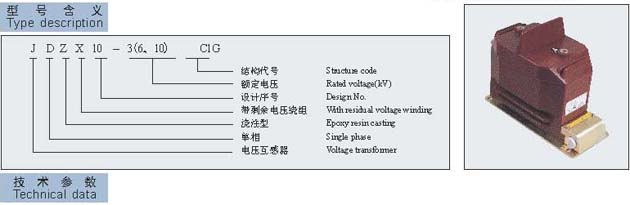

| 型号 Type |
额定电压比(kV) Rated voltage ratio |
准确级组合 Accuracy classes Combination (VA) |
额定输出(VA) Rated output (VA) |
极限输出(VA) Max output (VA) |
额定绝缘水平(kV) Rated insulation Level (kV) |
| JDZX10-3C1G | 3/√3/0.1/ √3/0.1/3 | 0.2/6P(3P) 0.5/6P(3P) 1/6P(3P) |
15(25)/50 30(60)/50 150/50 |
300 | 3.6/25/40 |
| JDZX10-6C1G | 6/√3/0.1/ √3/0.1/3 | 7.2/32/60 | |||
| JDZX10-10C1G | 10C1G 10/√3/0.1/ √3/0.1/3 | 12/42/75 |
