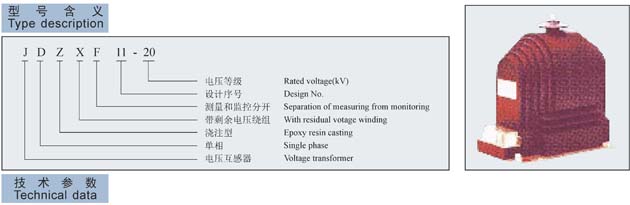

| 型号 Type |
额定电压比(kV) Rated voltage ratio |
准确级组合 Accuracy classes Combination (VA) |
额定输出(VA) Rated output (VA) |
极限输出(VA) Rated output (VA) |
额定绝缘水平(kV) Rated insulation Level (kV) |
| JDZX11-20 | 13.8/√3/0.1/√3/0.1/3 | 0.2/6P(3P) 0.5/6P(3P) 1/6P(3P) |
30/100 80/100 150/100 |
400 | 18/55/105 |
| 15/√3/0.1/√3/0.1/3 | |||||
| 15.7/√3/0.1/√3/0.1/3 | |||||
| 20/√3/0.1/√3/0.1/3 | 24/65/125 | ||||
| JDZXF11-20 | 13.8/√3/0.1/√3/0.1/√3/0.1/3 | 0.2/0.2/6P(3P) 0.2/0.5/6P(3P) 0.5/0.5/6P(3P) |
15/15/100 20/20/100 30/30/100 |
300 | 18/55/105 |
| 15/√3/0.1/√3/0.1/3/0.1/3 | |||||
| 15.7/√3/0.1/√3/0.1/√3/0.1/3 | |||||
| 20/√3/0.1/√3/0.1/√3/0.1/3 | 24/65/125 |
