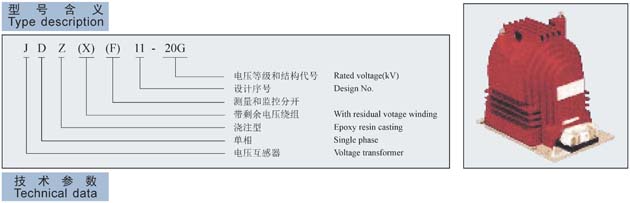

| 型号 Type |
额定电压比(kV) Rated voltage ratio |
准确级组合 Accuracy classes Combination (VA) |
额定输出(VA) Rated output (VA) |
极限输出(VA) Rated output (VA) |
额定绝缘水平(kV) Rated insulation Level (kV) |
| JDZ11-20 | 13.8/0.1 | 0.2 0.5 1 |
30 80 200 |
500 | 18/55/105 |
| 15/0.1 | |||||
| 15.7/0.1 | |||||
| 20/0.1 | 24/65/125 | ||||
| JDZF11-20 | 13.8/0.1/0.1 | 0.2/0.2 0.2/0.5 0.5/0.5 |
20/20 20/40 40/40 |
300 | 18/55/105 |
| 15/0.1/0.1 | |||||
| 15.7/0.1/0.1 | |||||
| 20/0.1/0.1 | 24/65/125 | ||||
| JDZX11-20G | 13.8/√3/0.1/√3/0.1/3 | 0.2/6P 0.5/6P |
30/100 80/100 |
400 | 18/55/105 |
| 15/√3/0.1/√3/0.1/3 | |||||
| 15.7/√3/0.1/√3/0.1/3 | |||||
| 20/√3/0.1/√3/0.1/3 | 24/65/125 | ||||
| JDZXF11- 20G |
13.8/√3/0.1/√3/0.1/√3/0.1/3 | 0.2/0.2/6P 0.2/0.5/6P 0.5/0.5/6P |
20/20/100 20/40/100 40/40/100 |
300 | 18/55/105 |
| 15/√3/0.1/√3/0.1/√3/0.1/3 | |||||
| 15.7/√3/0.1/√3/0.1/√3/0.1/3 | |||||
| 20/√3/0.1/√3/0.1/√3/0.1/3 | 24/65/125 |
