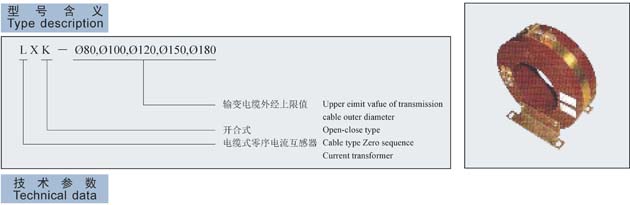

零序电流互感器 LXK－Ø80,Ø100,Ø120,Ø150,Ø180
继电器型号
Relay Type继电器线圈连接方式
Connecting method of Relay winding继电器刻度值
Scale value of Relay (A)一次零序电流值(A)
Primary zero sequence current (A)DD－11/60 串联 Series 15×1 24－4.5 30×1 并联 Parallel 15×2 3－5 30×2 DD－1/60 串联 Series 15×1 3－5 30×1 并联 Parallel 15×2 3－6 30×2
型号
Type额定电流比
Rated current ratio准确级组合及相应额定输出
Accuracy classes and rated outputLXK- Ø 80,100,120,150,180 50/1,60/1 10P级 2VA
