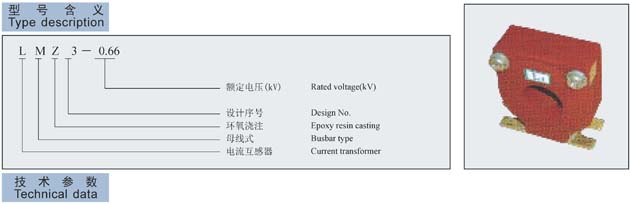

低压互感器 LMZ3－0.66

额定一次电流 Rated Primary current (A)	额定安匝数 Rated ampere turn	穿心匝数 turn through core	额定二次电流 Rated secondary Current (A)	准确级及相应额定输出 Accuracy classes and rated output (VA)
				1.0	0.5
5,10,20,40,50,100	100	1-20	5或1	2.5
15,30,75,150	150	1-10			2.5
200	200	1			5
300	300				10
400	400
