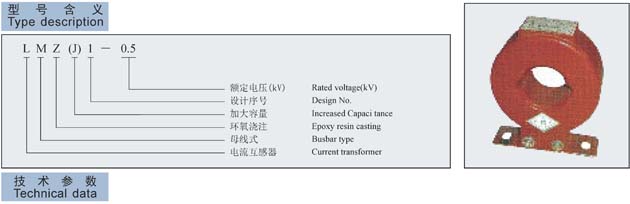

低压互感器 LMZ(J)1－0.5

型号 Type	额定一次电流 Rated Primary current (A)	额定安匝数 Turn ampere turn	穿心匝数 Turn through care	准确级及相应额定输出 Accuracy classes And rated output (VA)
型号 Type	额定一次电流 Rated Primary current (A)	额定安匝数 Turn ampere turn	穿心匝数 Turn through care	0.2	0.5	1.0	10P6
LMZ1-0.5	5,10,20,50,100	100	1-20		5	7.5
	15,30,75,150	150	1-10	5
	40,200	200	1-5
	300	300	1
	400	400	1
LMZJ1-0.5	5,10,15,20,30,40,50,75,100,150,200,300	300	1-60		10	15
	40,200,400	400	1-10
	500	500	1	10
	600	600	1
	750	750	1
	1000,1250,1500,2000,3000,4000	1000-4000	1	15	20	30	10
