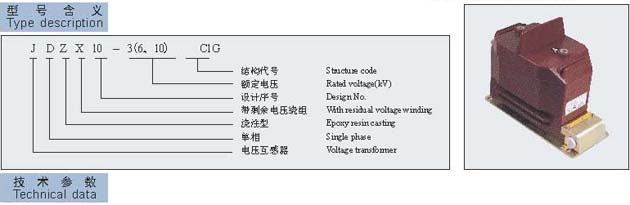

10kV电压互感器 JDZX10－3C1G/6C1G/10C1G
型号
Type额定电压比(kV)
Rated voltage ratio准确级组合
Accuracy classes
Combination (VA)额定输出(VA)
Rated output (VA)极限输出(VA)
Max output (VA)额定绝缘水平(kV)
Rated insulation
Level (kV)JDZX10-3C1G 3/√3/0.1/ √3/0.1/3 0.2/6P(3P)
0.5/6P(3P)
1/6P(3P)15(25)/50
30(60)/50
150/50300 3.6/25/40 JDZX10-6C1G 6/√3/0.1/ √3/0.1/3 7.2/32/60 JDZX10-10C1G 10C1G 10/√3/0.1/ √3/0.1/3 12/42/75
