10kV电压互感器 JDZ12－6,10(同RZL10)

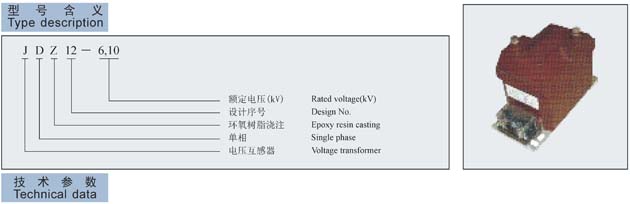

型号
Type额定电压比
Rated voltage
Ratio (kV/kV)准确级
Accuracy classes额定输出
Rated output
(VA)极限输出
Max output
(VA)额定绝缘水平
Rated insulation
Level (kV)额定频率
Rated frequency
(Hz)JDZ12-6 6/0.1 0.2 15 200 7.2/32/60 50/60 0.5 30 1.0 60 JDZ12-10 10/0.1 0.2 15 200 12/42/75 50/60 0.5 30 1.0 60
