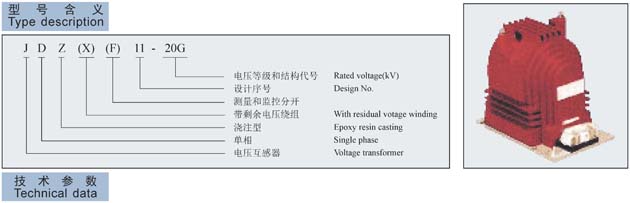

型号
Type |
额定电压比(kV)
Rated voltage ratio |
准确级组合
Accuracy classes
Combination (VA) |
额定输出(VA)
Rated output (VA) |
极限输出(VA)
Rated output (VA) |
额定绝缘水平(kV)
Rated insulation
Level (kV) |
| JDZ11-20 |
13.8/0.1 |
0.2
0.5
1 |
30
80
200 |
500 |
18/55/105 |
| 15/0.1 |
| 15.7/0.1 |
| 20/0.1 |
24/65/125 |
| JDZF11-20 |
13.8/0.1/0.1 |
0.2/0.2
0.2/0.5
0.5/0.5 |
20/20
20/40
40/40 |
300 |
18/55/105 |
| 15/0.1/0.1 |
| 15.7/0.1/0.1 |
| 20/0.1/0.1 |
24/65/125 |
| JDZX11-20G |
13.8/√3/0.1/√3/0.1/3 |
0.2/6P
0.5/6P |
30/100
80/100 |
400 |
18/55/105 |
| 15/√3/0.1/√3/0.1/3 |
| 15.7/√3/0.1/√3/0.1/3 |
| 20/√3/0.1/√3/0.1/3 |
24/65/125 |
JDZXF11-
20G |
13.8/√3/0.1/√3/0.1/√3/0.1/3 |
0.2/0.2/6P
0.2/0.5/6P
0.5/0.5/6P |
20/20/100
20/40/100
40/40/100 |
300 |
18/55/105 |
| 15/√3/0.1/√3/0.1/√3/0.1/3 |
| 15.7/√3/0.1/√3/0.1/√3/0.1/3 |
| 20/√3/0.1/√3/0.1/√3/0.1/3 |
24/65/125 |
