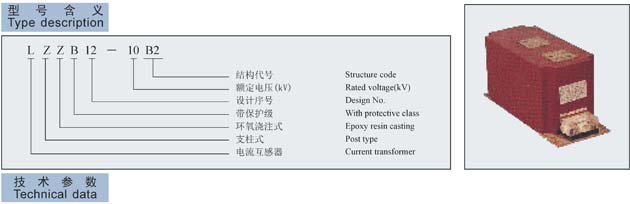

10kV电流互感器 LZZB12－10B2(同AS12/185h/4s)

型号 Type	额定一次电流 Rated primary current (A)	额定二次电流 Rated secondary current (A)	准确级组合 Accuracy classes combination	准确级及相应额定输出 Accuracy classes and Rated output (VA)				短时热电流 Short-time Thermal Current (kA/S)	额定动稳定电流 Rated dynamic current (kA Peak)
型号 Type	额定一次电流 Rated primary current (A)	额定二次电流 Rated secondary current (A)	准确级组合 Accuracy classes combination	0.2S 0.2	0.5	5P10	5P20	短时热电流 Short-time Thermal Current (kA/S)	额定动稳定电流 Rated dynamic current (kA Peak)
LZZB12 -10B2	30.40	5或1	0.2S/0.5/5P20 0.2S/5P10/5P20 0.5/0.5/5P20 0.5/5P10/5P20 0.5/5P10/5P10	10	15	15	20	5/2	16
	50.60							7/2	22
	75							10/2	32
	100							15/2	48
	150							21/2	67
	200							31.5/2	100
	300.400							31.5/3	100
	500.600							40/3	128
	750~1500			15	20	20		50/3	160
	2000~3000			20	30	30		63/3	160
