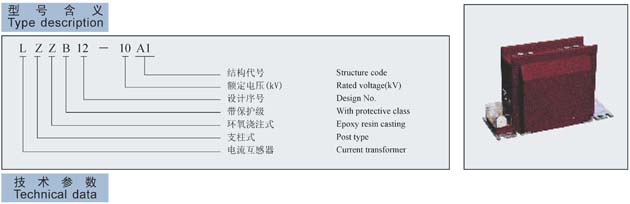

10kV电流互感器 LZZB12－10A1(同AS12/150b/2S)
型号 Type 额定一次电流 Rated primary current (A) 额定二次电流 Rated secondary current (A) 准确级组合 Accuracy classes combination 准确级及相应额定输出 Accuracy classes and Rated output (VA) 短时热电流 Short-time Thermal Current (kA/S) 额定动稳定 电流 Rated dynamic current (kA Peak) 0.2S 0.2 0.5 5P10 LZZB12 -10A1 20 5或1 0.2S/0.2 0.2S/0.5 0.2S/5P10 0.2/5P10 0.5/5P10 10 15 15 5/2 16 30 7/2 22 40 50.60 12/2 38 75 18/2 56 100 20/2 76 150 31.5/2 100 200 250.300 31.5/3 100 400.500 20 20 600 15 30 30 40/3 128 750~2000 45/3 144
