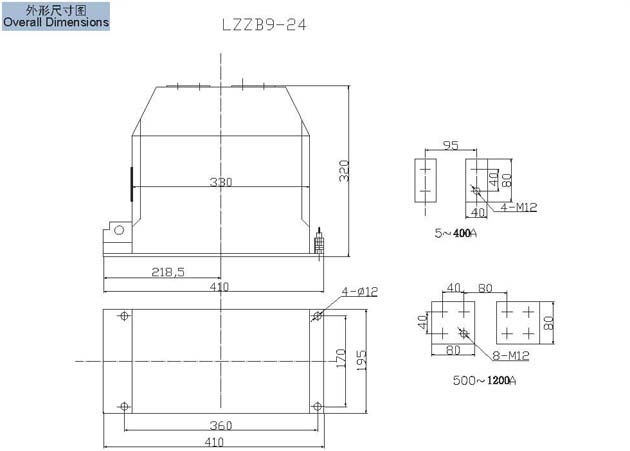

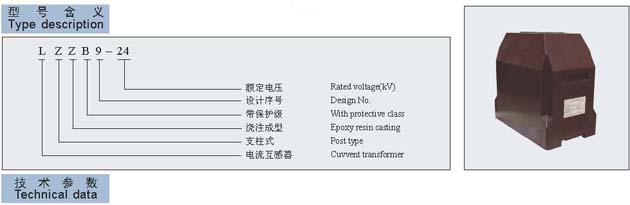

20kV电流互感器 LZZB9－24

额定一次电流(A) Rated primary current (A)	准确级组合 Accuracy classes combination	准确级及额定输出(VA) Accuracy classes and Rated output (VA)				额定短时热电流 (kA)/时间(s) Short-time Thermal Current (kA/S)	额定动稳定电流 (峰值)(kA) Rated dynamic current (kA Peak)
额定一次电流(A) Rated primary current (A)	准确级组合 Accuracy classes combination	0.2	0.5	5P10	10P20	额定短时热电流 (kA)/时间(s) Short-time Thermal Current (kA/S)	额定动稳定电流 (峰值)(kA) Rated dynamic current (kA Peak)
5~1200	0.2/0.5 0.2/5P10 02/10P20 0.5/10P10 0.5/10P20 5P10/10P20 5P10/5P10	10	40	30	20	150I1n	2.5Ith
