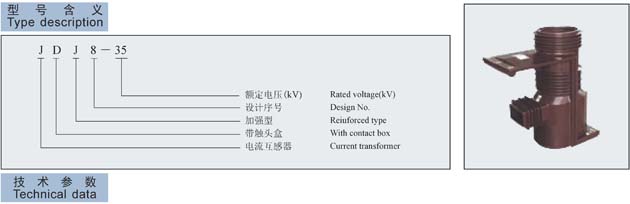

35kV电流互感器 LDJ8－35

额定一次电流 Rated primary current (A)	准确级组合 Accuracy classes combination	额定输出(VA) Rated output (VA)	额定短时热电流 (Ith)(kA) Short-time Thermal Current (kA/S)	额定动稳定电流 Rated dynamic current (kA Peak)
20-300	02/10P10 0.5/10P10 0.2/10P20 0.5/10P20 0.2/0.5/10P10 0.2/0.5/10P20 0.2/10P10/10P10	20/50 30/50 20/20 30/20 20/30/30 20/30/15 20/30/30	150I1n	375I1n
400			45	112.5
500			63	130
600			63
800	02/10P10 0.5/10P10 0.2/10P20 0.5/10P20 0.2/0.5/10P10 0.2/0.5/10P20 0.2/10P10/10P10	30/50 50/50 40/30 50/30 30/40/40 30/40/20 30/40/40	80
1000-1200
1500
2000-3000			100	160
