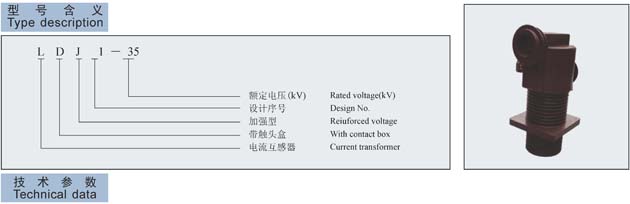

35kV电流互感器 LDJ1－35

额定一次电流 Rated primary current (A)	准确级组合及额定输出(VA) Accuracy classes and Rated output (VA)				额定短时热电流 (kA)/时间(s) Short-time Thermal Current (kA/S)	额定动稳定电流 (峰值)(kA) Rated dynamic current (kA Peak)
额定一次电流 Rated primary current (A)	0.2/10P10	0.5/10P10	0.2/0.5	10P10/10P10	额定短时热电流 (kA)/时间(s) Short-time Thermal Current (kA/S)	额定动稳定电流 (峰值)(kA) Rated dynamic current (kA Peak)
15~300	10/30	20/30	10/20	20/20	150I1n	375I1n
400	10/40	15/40	10/15	20/20	63	130
500	10/40	15/40	10/15	25/25
600	10/50	30/50	10/30	30/30
800	15/50	30/50	15/30	30/30
1000~2000	20/50	50/50	20/50	40/40	80
