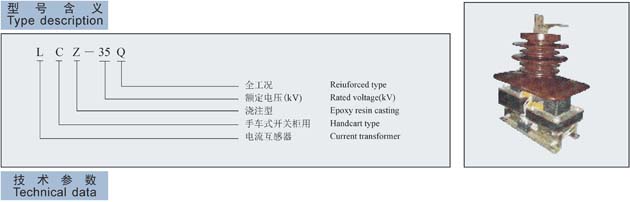

35kV电流互感器 LCZ－35Q

额定一次电流 Rated primary current (A)	准确级组合 Accuracy classes combination	准确级及额定输出(VA) Accuracy classes and Rated output (VA)				额定短时热电流 (kA)/时间(s) Short-time Thermal Current (kA/S)	额定动稳定电流 (峰值)(kA) Rated dynamic current (kA Peak)
额定一次电流 Rated primary current (A)	准确级组合 Accuracy classes combination	0.2	0.5	10P10	10P25	额定短时热电流 (kA)/时间(s) Short-time Thermal Current (kA/S)	额定动稳定电流 (峰值)(kA) Rated dynamic current (kA Peak)
20	0.2/0.5 02/10P10 0.5/10P10 02/10P15 0.5/10P15 10P10/10P10 10P25/10P25	30	50	50	20	1.3	3.25
30						2	5
40						3	7.5
50						4.5	11.5
75						6	15
100						9	2.5
150						12	30
200						18	45
300						24	60
400						36	90
500						48	120
600
800
1000
