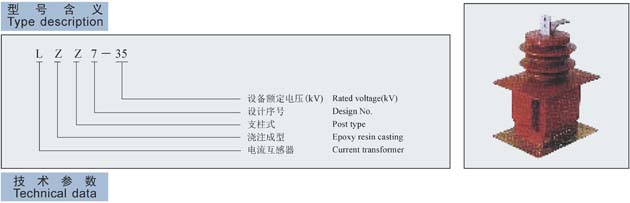

35kV电流互感器 LZZ7－35

额定一次电流 Rated primary current (A)	准确级组合 Accuracy classes combination	准确级及额定输出(VA) Accuracy classes and Rated output (VA)				额定短时热电流 (kA)/时间(s) Short-time Thermal current	额定动稳定电流 (峰值)(kA) Rated dynamic current (kA Peak)
额定一次电流 Rated primary current (A)	准确级组合 Accuracy classes combination	0.2级	0.5级	10P10级	10P25级	额定短时热电流 (kA)/时间(s) Short-time Thermal current	额定动稳定电流 (峰值)(kA) Rated dynamic current (kA Peak)
20	0.2/0.5 0.2/10P 0.5/10P	15	30	50	20	2.5	6.3
30						4.5	12
40						6.3	16
50						8	20
75						12.5	31.5
100						16	40
150						45	110
200		20				45	110
300		30				63	130
400			30
500			30
600			30
800			40
1000			50
