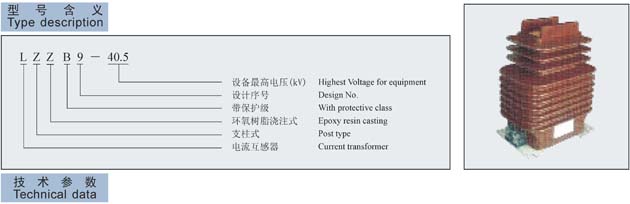

35kV电流互感器 LZZB9－40.5

额定一次电流 Rated primary current (A)	额定二次电流 Rated secondary current (A)	准确级组合 Accuracy classes combination	准确级及相应额定输出 Accuracy classes and Rated output (VA)					短时热电流 Short-time Thermal Current (kA/S)	额定动稳定电流 Rated dynamic current (kA Peak)
			0.2S	0.2	0.5	5P10	5P20
15	5或1	0.2S/5P10 0.2S/5P20 0.2/5P10 0.2/5P20 0.5/5P10 0.5/5P20 0.2S/5P10/5P20 0.2/5P10/5P20 0.5/5P10/5P20 0.2/0.5/5P10 0.2/0.5/5P20	10	10	20	30	20	3.2	8
20								4.5	11.5
30								6.3	16
40								9	22.5
50.60								12	30
75								16	40
100.150								25	63
200								31.5	80
250.300			15	15	30
400								40	100
500			20	20
600			30	30	40
750(800)			40	50
1000			50	60
1250(1200)						40		63	150
1500.2000						50
